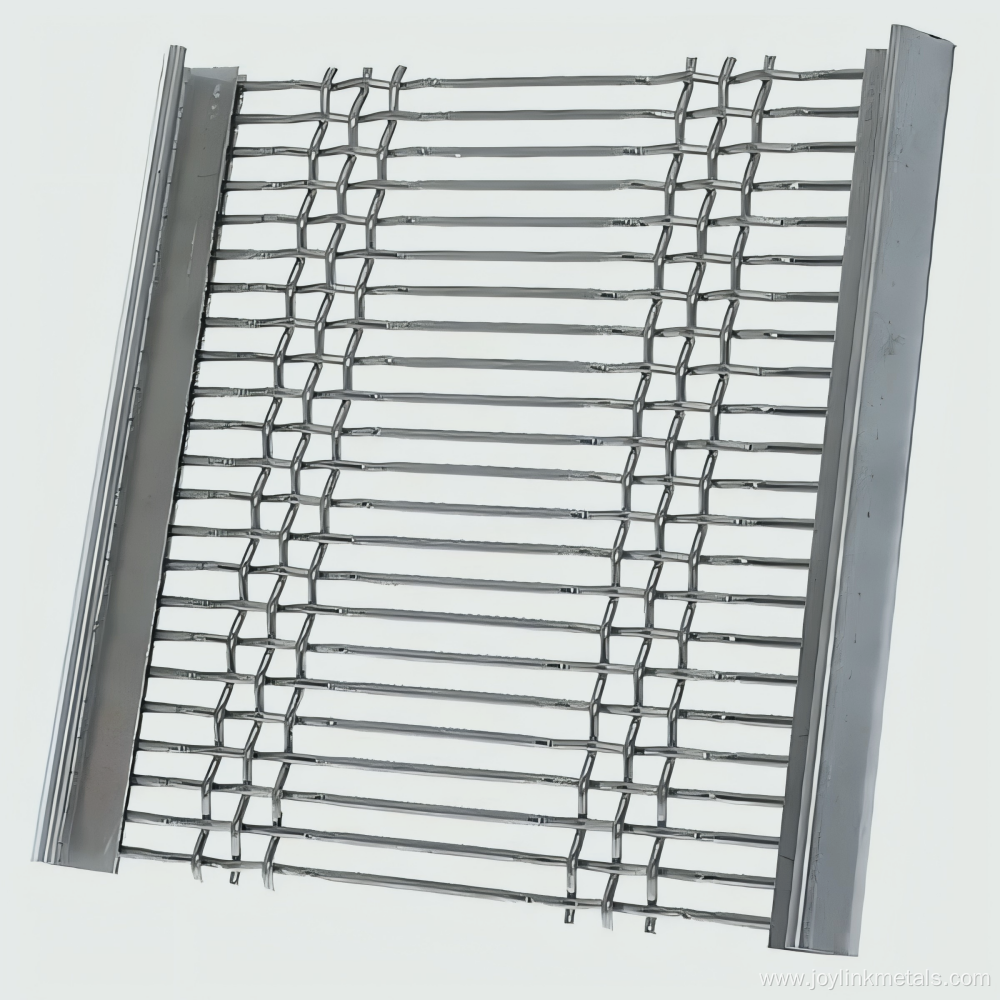

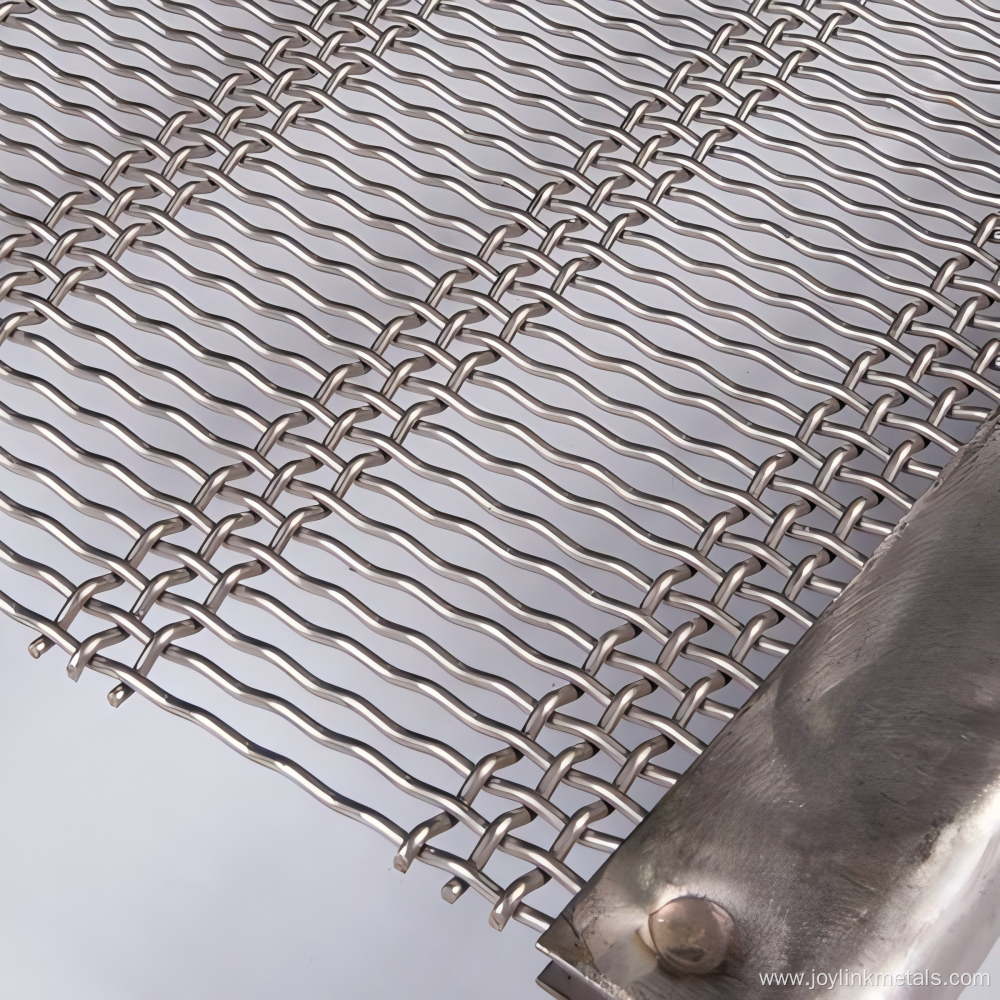

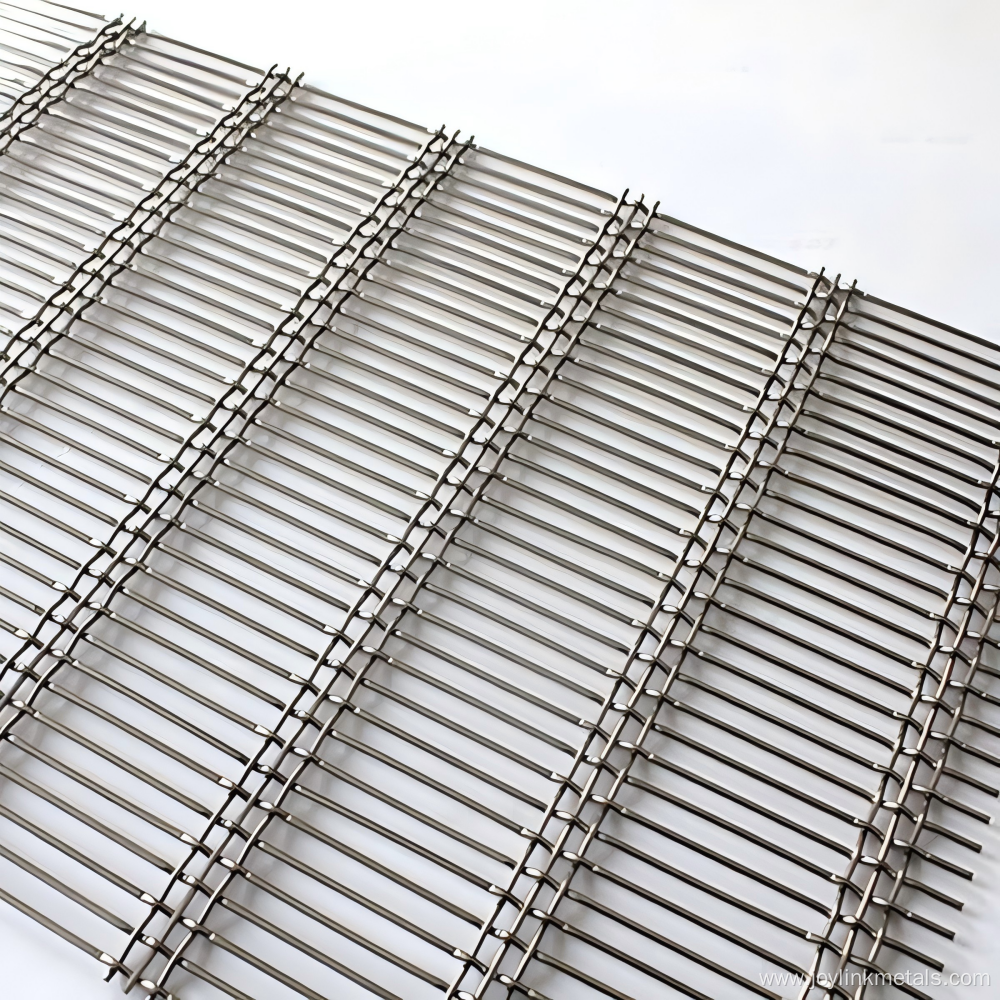

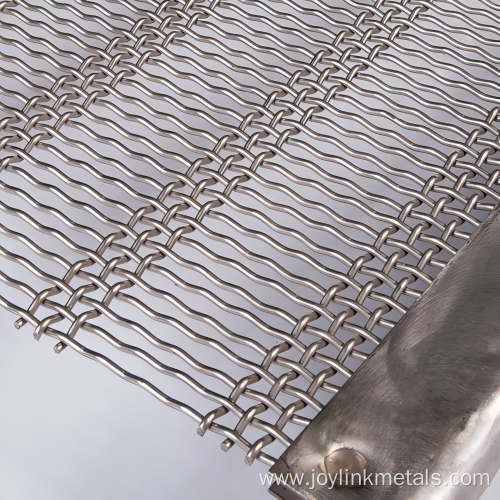

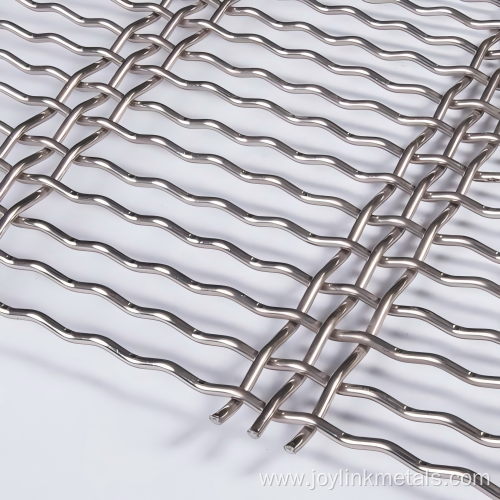

Slot Wire Mesh – High-Performance Mining Screen for Optimal Separation and Durability JoyLink offers premium slot wire mesh designed specifically for demanding applications in mining, mineral processing, quarrying, and aggregate industries. This specialized screening solution is engineered to reduce blinding and pegging while maximizing throughput and efficiency. Whether you're processing fine particles or coarse materials, our slot wire mesh delivers consistent performance with minimal maintenance. Key Features: - Precision-engineered apertures using uniform diameter wires for enhanced accuracy - Available in carbon steel or stainless steel options for corrosion resistance and strength - Two distinct weaving styles: flat top and double
crimped for tailored rigidity and flow dynamics - Exceptional open area ratios (up to 75%) for improved material handling and reduced clogging - Reinforced edge profiles including
plain hooked, double-folded shroud, end tension, and welded bent plate types - Customizable dimensions up to 2 meters wide and 30 meters long to meet project-specific requirements Detailed Description: Slot wire mesh stands out from traditional square-wire screens due to its unique construction—wires are crimped rather than
woven, creating elongated slots that allow for superior self-cleaning action during operation. The design minimizes blockages caused by moisture, fines, or sticky substances, making it ideal for wet or high-moisture environments. Our manufacturing process ensures uniformity across each sheet, guaranteeing consistent performance over time. With a variety of aperture sizes ranging from 1.5 mm to 12 mm and corresponding wire diameters between 1.25 mm and 4.00 mm, customers can select the perfect configuration for their specific separation needs. For instance, smaller apertures like 2.5 x 50 mm provide excellent retention for fine aggregates, while larger ones such as 10 x 60 mm offer high capacity for bulk materials. Each specification includes weight per square meter and open area percentage to help engineers make informed decisions based on load-bearing capacity and flow rate requirements. Applications: This product excels in vibrating screens, trommel separators, and other mechanical classifiers used in gold extraction, coal preparation, sand washing, and crushed stone operations. It's also widely adopted in recycling facilities where consistent particle size distribution is critical. Due to its robust structure and low maintenance profile, slot wire mesh is preferred in both primary and secondary screening stages across global mining sites. Customer Feedback: Users consistently praise the durability and ease of installation of JoyLink’s slot wire mesh. One operator from Australia noted, “After switching from standard square mesh to this slotted version, we saw a 30% reduction in downtime due to screen blinding.” Another user from South Africa highlighted the effectiveness of the double crimped variant in handling abrasive limestone without premature wear. These testimonials reflect real-world results achieved through advanced engineering and quality control. Frequently Asked Questions: What makes slot wire mesh better than square wire mesh? The linear slot shape provides greater open area and allows materials to rotate more freely, reducing the chance of jamming compared to square openings which tend to trap particles. Can I order custom sizes or configurations? Yes, all specifications listed are standard offerings, but we accommodate bespoke requests for width, length, wire gauge, and edge treatment to suit your operational setup. Is stainless steel available for harsh environments? Absolutely. Stainless steel variants offer enhanced resistance to chemical exposure and extreme weather conditions, ensuring longer service life in corrosive settings. How do I choose the right edge type for my application? Plain hooked edges are suitable for basic installations; reinforced shroud edges add structural integrity for heavy-duty use; double-folded and end-tension versions provide additional support under dynamic loads. Welded bent plate edges ensure secure mounting on vibrating frames. Why should I consider large-order discounts? We offer special pricing tiers for bulk purchases, enabling cost-effective procurement for large-scale projects such as new mine developments or plant expansions.
